Preventing Zirconia Bonding Failures: A Chairside Protocol for Primers and Cements

Few things interrupt a productive clinic day like a crown pop-off. While modern high-translucency and layered zirconia offer incredible aesthetics and flexural strength, cementation failures remain a common headache for general dentists.

The primary cause? Treating zirconia like a glass-ceramic.

Zirconia is a polycrystalline oxide ceramic containing zero silica glass. Because of this, hydrofluoric acid etching and silane coupling agents—the gold standard for lithium disilicate (e.max)—have zero chemical effect on zirconia. To prevent debonding and achieve a long-lasting chemical bond, clinicians must follow a specific chemical protocol tailored to zirconia's surface properties.

Here is your step-by-step chairside protocol for surface preparation, saliva decontamination, and primer/cement selection to ensure your restorations stay permanently fixed.

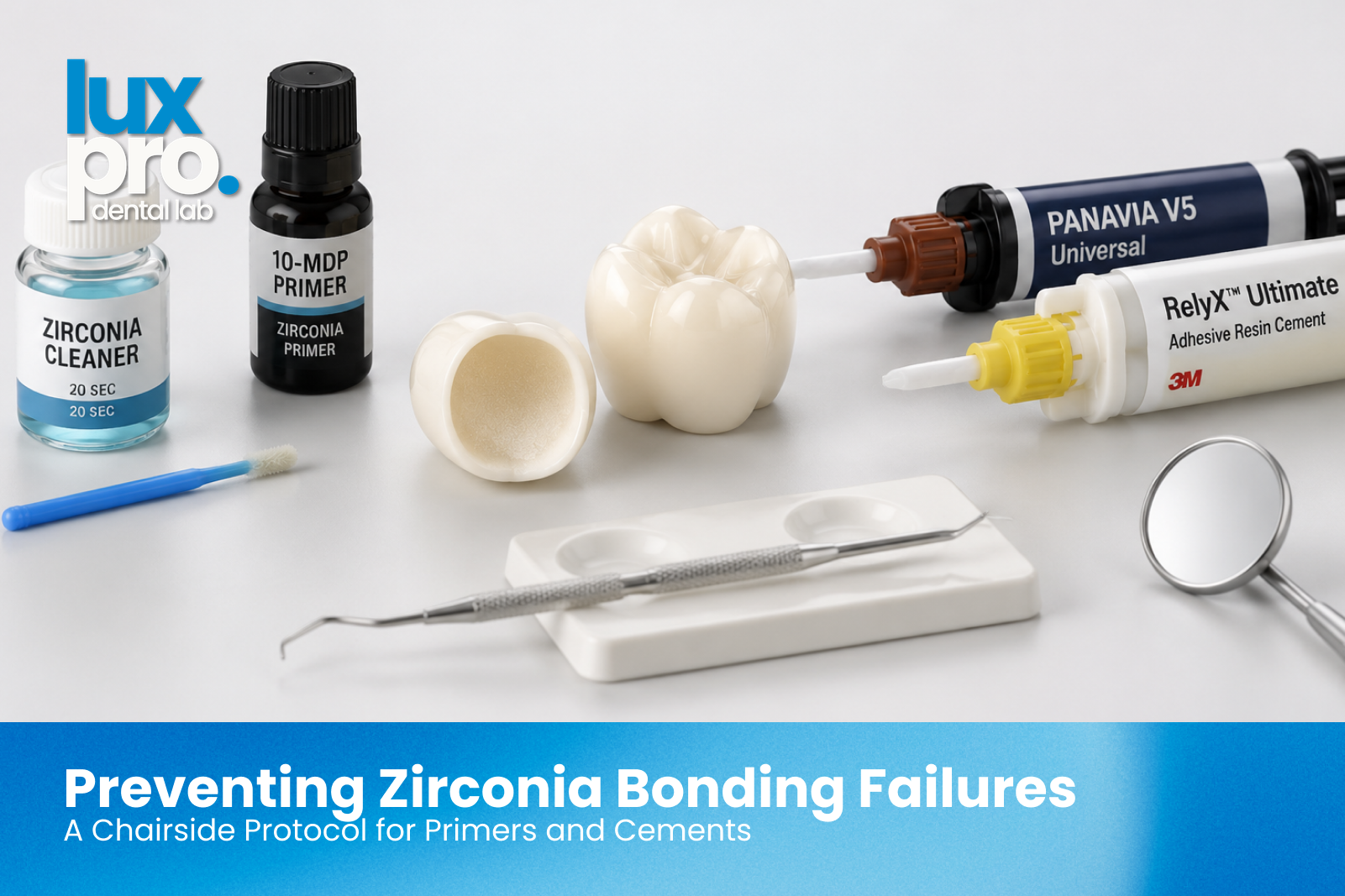

Zirconia requires mechanical micro-retention and specific MDP chemical priming for predictable bonding.. Source: Glidewell

1. The Saliva Trap: Why Clean-Up Matters Most

During try-in, the internal fitting surface of your zirconia crown comes into contact with saliva. Saliva contains phosphate ions, which immediately bind to the oxide sites on the zirconia surface.

If these phosphate ions remain on the zirconia during seating, they block the binding sites needed for your MDP primer or resin cement to form a chemical bond. Simply rinsing with water, blowing air, or using phosphoric acid gel will not remove them—in fact, phosphoric acid adds more phosphate ions, permanently contaminating the surface.

Correct Saliva Decontamination

• Do NOT use Phosphoric Acid: Applying etch to the inside of a zirconia crown inactivates the bonding surface.
• Use an Alkaline Cleaner: Use a specialized zirconia cleaner (such as Ivoclean or ZirClean) for 20 seconds, then rinse thoroughly with water and air dry.
• Alternative (Re-Sandblasting): If an alkaline cleaner is unavailable, gently micro-air abrade the intaglio surface again at the chairside using 50 µm aluminum oxide at 1.5 to 2 bar.

2. The Role of MDP Primers: Chemical Fusion

The secret to a true chemical bond with zirconia is the 10-MDP molecule (10-Methacryloyloxydecyl dihydrogen phosphate).

The phosphate head group of the MDP monomer forms a extremely stable ionic chemical bond directly with the zirconium oxide surface, while the methacrylate group bonds with your resin cement matrix.

Chairside Surface Conditioning Protocol

1.Surface Micro-Abrasion (Lab or Chairside):Micro-retention creation.

Ensure the intaglio surface has been sandblasted with 50 µm Al2O3 particles at low pressure (1.5–2.0 bar). Most quality dental labs deliver crowns pre-sandblasted, but chairside touch-ups are recommended after fit adjustments.

2.Decontaminate Post Try-In:20-second application.

Apply a dedicated zirconia cleaning gel (e.g., Ivoclean) to the internal surface post-try-in, scrub for 20 seconds, rinse thoroughly with water spray, and blow oil-free air dry.

3.Apply 10-MDP Primer:60-second reaction.

Apply a dedicated 10-MDP ceramic primer (e.g., Z-Prime Plus, Monobond Plus) or use a resin cement that already contains integrated MDP monomers. Allow it to react and air dry completely.

3. Selecting the Right Cement: Conventional vs. Resin

Not every zirconia restoration requires adhesive bonding. The decision between conventional cementation and resin bonding comes down to prep geometry and retention.

Option A: Conventional RMGI Cement

• When to use: Retentive preparations (axial wall height 4 mm or greater, convergence angle between 6 and 10 degrees).
• Recommended cements: Resin-Modified Glass Ionomer (RMGI) like RelyX Luting Plus or GC Fuji PLUS.
• Advantage: Fast, forgiving, easy moisture control, and simple cleanup.

Option B: Self-Adhesive or Adhesive Resin Cement

• When to use: Short preps (under 4 mm), overly tapered preps, smooth surfaces, or when extra retention is mandatory.
• Recommended cements: MDP-containing cements like Panavia V5, RelyX Universal, or Multilink Automix.
• Advantage: Provides maximum bond strength and seals margins effectively.

4. Chairside Troubleshooting Matrix
