Mastering the All-on-X Workflow: Best Practices for Achieving Passive Fit

Few procedures in modern dentistry are as life-changing for a patient—or as stress-inducing for a clinician—as an All-on-X full-arch implant restoration. These are high-ticket, high-emotion cases, and a single microscopic error in the workflow can lead to catastrophic mechanical or biological failure down the road.

The ultimate goal of any full-arch restorative workflow is passive fit.

When a full-arch prosthesis is screwed down, it must exert zero tension, strain, or stress on the underlying implants, multi-unit abutments, or marginal bone. If the framework does not fit perfectly passively, you face an uphill battle against screw loosening, component fractures, or even crestal bone loss and implant failure.

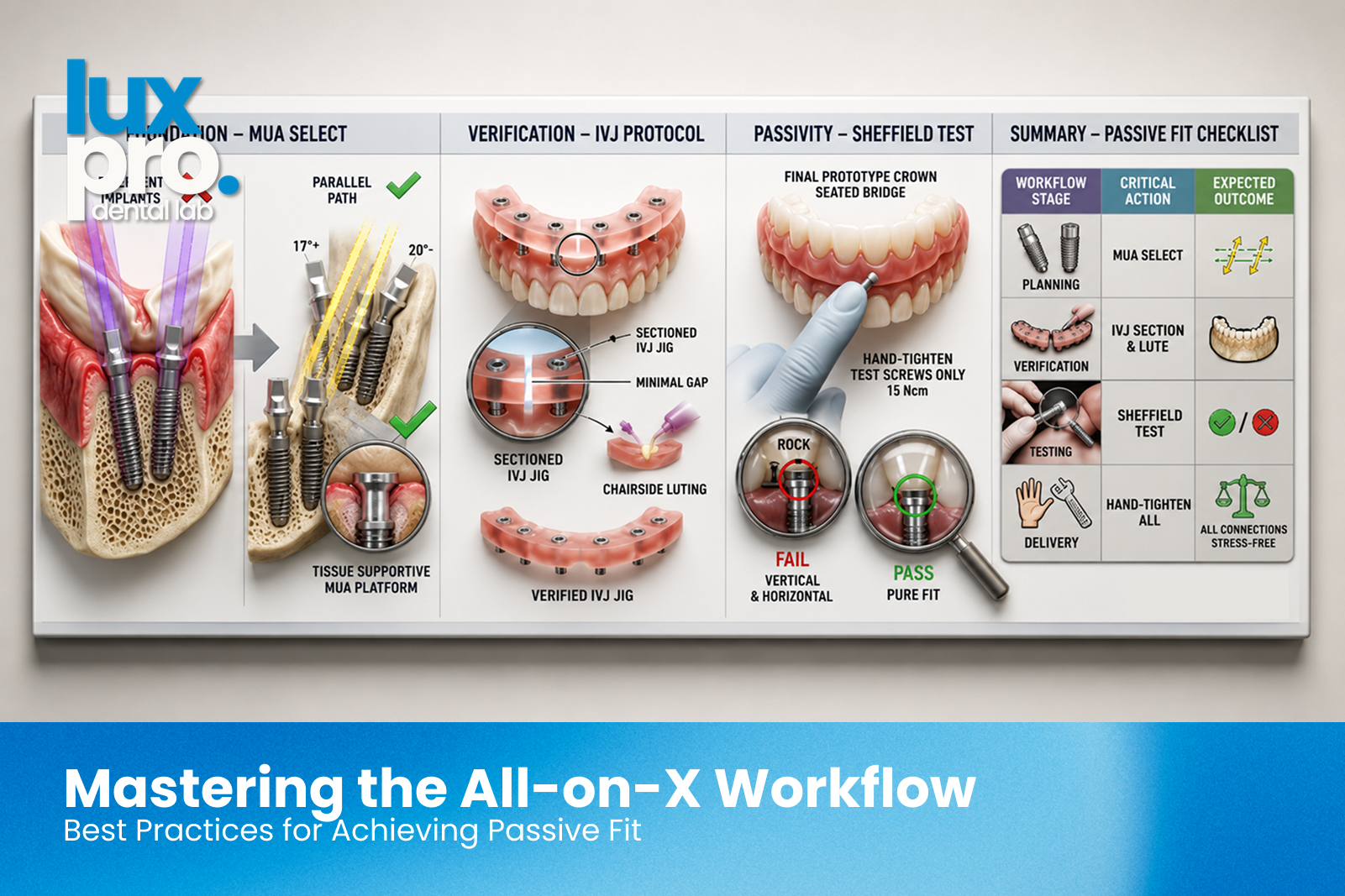

Achieving a flawless passive fit requires a meticulous chairside protocol. Here is your clinically verified, step-by-step guide to mastering the All-on-X workflow.

1. The Foundation: Choosing the Right Multi-Unit Abutments (MUAs)

Achieving a passive fit starts immediately after surgery—or during digital treatment planning—by selecting the correct Multi-Unit Abutments (MUAs). Attempting to restore a full-arch prosthesis directly to the implant fixture level is a recipe for a seating nightmare.

MUAs are non-negotiable for full-arch restorations for three reasons:

• Angulation Correction: They correct divergent implant angles (usually up to $17^\circ$, $30^\circ$, or even $45^\circ$ depending on the implant system), creating a unified, parallel path of insertion.

• Platform Switching & Tissue Elevation: They raise the restorative platform from the bone level to the tissue level, protecting the delicate peri-implant biological width during restorative phases.

• Standardization: They convert different implant platforms into a uniform, non-engaging restorative platform.

Clinical Pearl: Always select the MUA tissue height based on the thickest portion of the soft tissue. Ideally, you want the MUA platform to sit roughly 1.0mm supragingivally in non-aesthetic zones. This makes impression coping placement, scanning, hygiene maintenance, and excess debris cleanup vastly easier.

2. Overcoming Material Limits: The Implant Verification Jig (IVJ)

Whether your workflow is 100% digital or traditional analog, you cannot skip the verification phase. Even the most advanced intraoral scanners can introduce minor "stitching" drift across a full arch, and traditional impression materials experience subtle volumetric shrinkage.

An implant verification jig (IVJ) is the only definitive way to prove that your master model exactly mirrors the spatial relationship of the implants in the patient’s mouth.

The Section-and-Lute Protocol

Many clinicians fabricate their jigs using self-curing polymethyl methacrylate (PMMA) resins, such as GC Pattern Resin or Duralay. However, these materials exhibit high volumetric polymerization shrinkage (up to 8% within the first 24 hours). To overcome this, you must use the section-and-lute technique:

1. Allow Initial Shrinkage: The laboratory fabricates the splinted jig on the master model. Because 80% of acrylic shrinkage occurs within the first 17 minutes of mixing, the jig has already undergone bulk contraction before it reaches your office.

2. Section the Jig: Prior to try-in, use a thin diamond disk to cut the jig between each implant interface.

3. Seat and Verify: Screw the individual segments onto the MUAs. There should be a hair-thin gap between the sectioned pieces, showing no physical contact.

4. Lute Chairside: Use a microscopic amount of fresh pattern resin or a low-shrinkage, dual-cure splinting resin to join the segments back together intraorally. Because the volume of new resin is minimal, subsequent shrinkage is clinically negligible.

5. Capture the Position: Pick up the verified jig in a custom tray plaster/elastomeric impression, or capture a new verified scan.

3. Assessing Passivity: The Sheffield Test (One-Screw Test)

Before your laboratory proceeds to final milling of a monolithic zirconia or titanium-acrylic hybrid bridge, you must evaluate the fit of the Verification Jig or PMMA Prototype chairside using the Sheffield Test (the One-Screw Test).

Never tighten all the screws at once to evaluate fit. Friction and screw-threading forces can easily bend components and mask an ill-fitting framework until it's too late.

How to Perform the Sheffield Test:

1. Remove all provisional components and clean the MUA platforms thoroughly.

2. Place the jig or PMMA prototype onto the MUAs.

3. Hand-tighten a single screw into the most distal implant on one end of the arch using a manual screwdriver. Do not use a torque wrench.

4. Using high magnification (loupes or a microscope) and a sharp explorer, inspect the opposite end of the arch.

• Pass: The framework seats completely flush on all other MUA platforms with zero vertical gaps.

• Fail (The Rock): A vertical discrepancy or "shadow" is visible between the framework and the MUA platform on the opposite end.

If the framework lifts even a fraction of a millimeter on the un-screwed side, the fit is NOT passive.

Correcting the Misfit (Before Final Mill)

If the PMMA prototype fails the Sheffield Test, do not proceed to the final zirconia bridge. Instead, section the PMMA prototype at the site of the inaccuracy. Secure the individual segments back onto the MUAs, hand-tighten them, and lute the cut segments back together chairside using pattern resin.

Your laboratory will use this re-indexed prototype to correct the master model, ensuring the final zirconia or titanium prosthesis drops in with absolute passivity.

4. Summary: The Passive Fit Checklist

Partner with an All-on-X Authority

Achieving a passive fit is a team effort between clinician and laboratory. At LuxPro Dental Lab, we understand that full-arch cases require an elite level of engineering and communication.

Our dedicated implant department works alongside you from day one, helping you plan your All-on-X cases with precision. We engineer custom verification jigs for every case and utilize state-of-the-art CAD/CAM milling to ensure that our PMMA prototypes and final monolithic zirconia frameworks seat with a passive, drop-in fit.

Have an upcoming full-arch case? Partner with LuxPro today to schedule a case consultation with our technical team and experience a more predictable All-on-X workflow.
