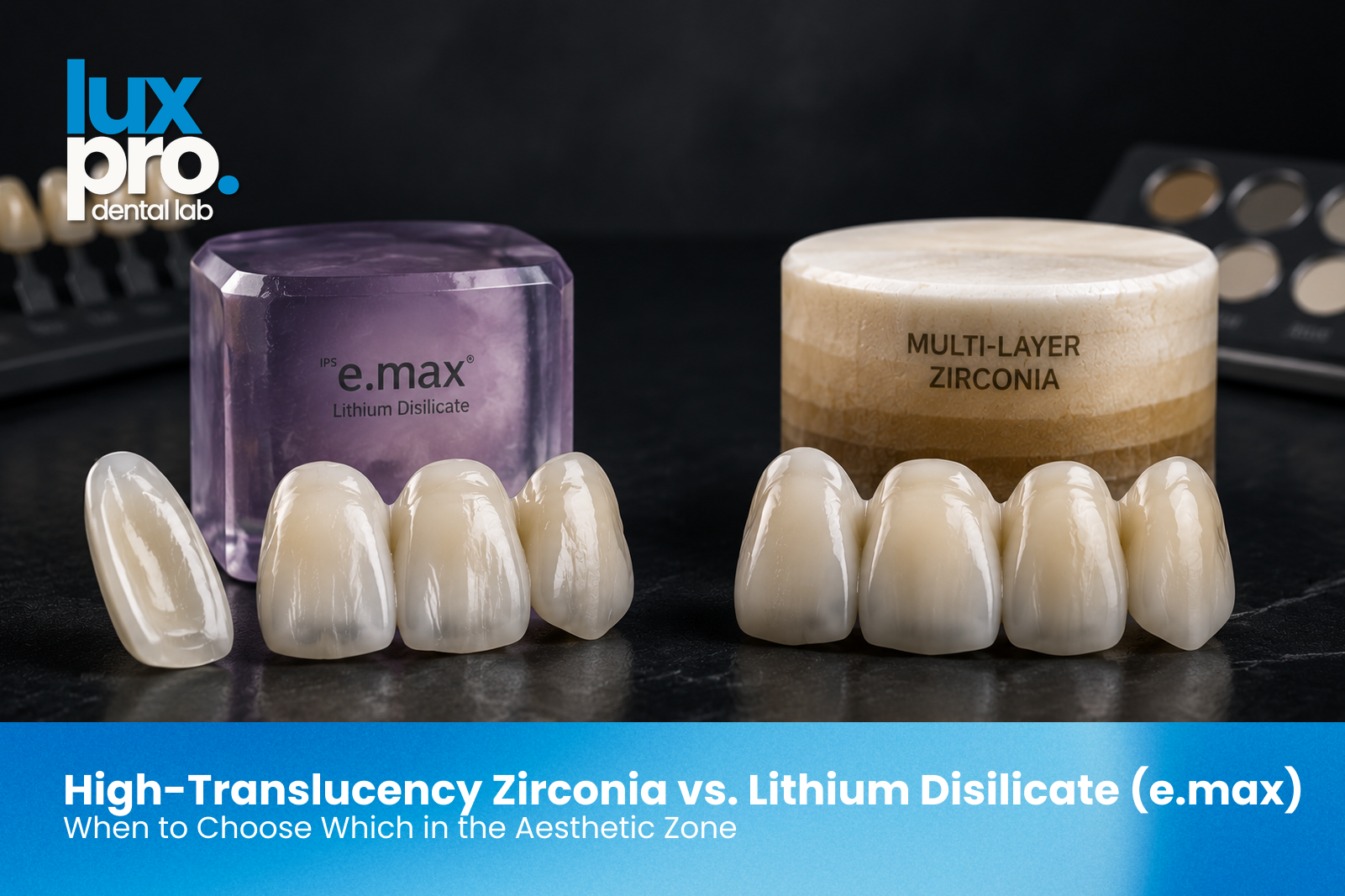

High-Translucency Zirconia vs. Lithium Disilicate (e.max): When to Choose Which in the Aesthetic Zone

Every clinician knows the moment: you’re prepping a central incisor or anterior bridge, and the choice comes down to material selection. On one hand, IPS e.max® (lithium disilicate) offers that unmatched glassy warmth and lifelike translucency. On the other hand, modern multi-layered zirconia brings brute force resistance without looking like a chalky white block anymore.

So, where do you draw the line?

With high-translucency zirconia narrowing the aesthetic gap and lithium disilicate expanding its strength profile, picking the right material in the aesthetic zone requires looking at more than just shade. Here is your definitive side-by-side guide to choosing between IPS e.max® and Multi-Layered Zirconia for predictable, long-lasting outcomes.

1. Preparation Depth & Space Requirements

Minimally invasive dentistry is the goal, but tissue preservation only works if your material tolerates the required thickness.

• IPS e.max®: Thrives in conservative preparations when adhesively bonded.

• Min. Reduction: 0.8 mm – 1.0 mm (Facial/Axial), 1.5 mm (Incisal/Occlusal).

• Best practice: Ideal for thin veneers, partial-coverage restorations, and single anterior crowns where tooth preservation is paramount.

• Multi-Layered Zirconia: Offers higher flexural strength, allowing for thinner margins when space is constrained.

• Min. Reduction: 0.6 mm – 0.8 mm (Axial), 1.0 mm – 1.2 mm (Incisal/Occlusal).

• Best practice: Perfect for tight bites, deep bites, or patients with reduced clearance where you can't prep deeply without compromising pulp vitality.

Clinical Tip: If you have under 1.0 mm of incisal clearance, multi-layered zirconia gives you the necessary structural integrity without risking early micro-fractures.

2. Optical Aesthetics & Hiding Discolored Substrates

Aesthetics isn't just about brightness—it's about how light travels through the restoration and what lies beneath it.

• IPS e.max®: Has higher glass content, making light reflection virtually identical to natural enamel. However, because it is so translucent, discolored prep stumps (ND4 or darker) will shine right through. If you use high-opacity e.max ingots to mask dark preps, you sacrifice that natural depth.

• Multi-Layered Zirconia: Blends a denser crystalline base at the cervical third (to block dark dentin or titanium posts) with high-translucency cubic zirconia at the incisal edge. It is your best friend when trying to match a single anterior crown to a dark stump.

3. Bonding Protocols & Cementation Strategy

How you seat the crown is just as critical as how you prep it.

IPS e.max®: Etch & Bond (Adhesive Protocol)

Lithium disilicate relies heavily on chemical bonding for structural strength.

1. Etch: Hydrofluoric acid (HF) 4.5–5% for 20 seconds.

2. Silanate: Apply silane coupling agent for 60 seconds and dry.

3. Cement: Dual-cure resin cement (e.g., Variolink Esthetic) for maximum bond strength.

Multi-Layered Zirconia: Cement or Bond

Zirconia cannot be etched with HF acid!

1. Clean: Air-abrade inside the crown with 50 µm Al2O3 at low pressure (1.5–2 bar) or use a zirconia cleaner (e.g., Ivoclean).

2. Prime: Apply an MDP-containing primer (e.g., Z-Prime Plus or Monobond Plus).

3. Cement: If you have adequate retention (retentive prep height > 4mm), you can seat with self-adhesive resin cement or conventional RMGI (Resin-Modified Glass Ionomer).

4. Quick Indicator Guide: Zone & Case Selection
